MULTI-FUNCTION HAND PRESS FOR LEATHERWORK: CUTTING, STAMPING, ACCESSORY SETTING...

With the Craftplus 3960-00 hand press, enjoy remarkable precision for stamping all the details of your 3D stamps, setting your accessories, and effortlessly cutting your leather.

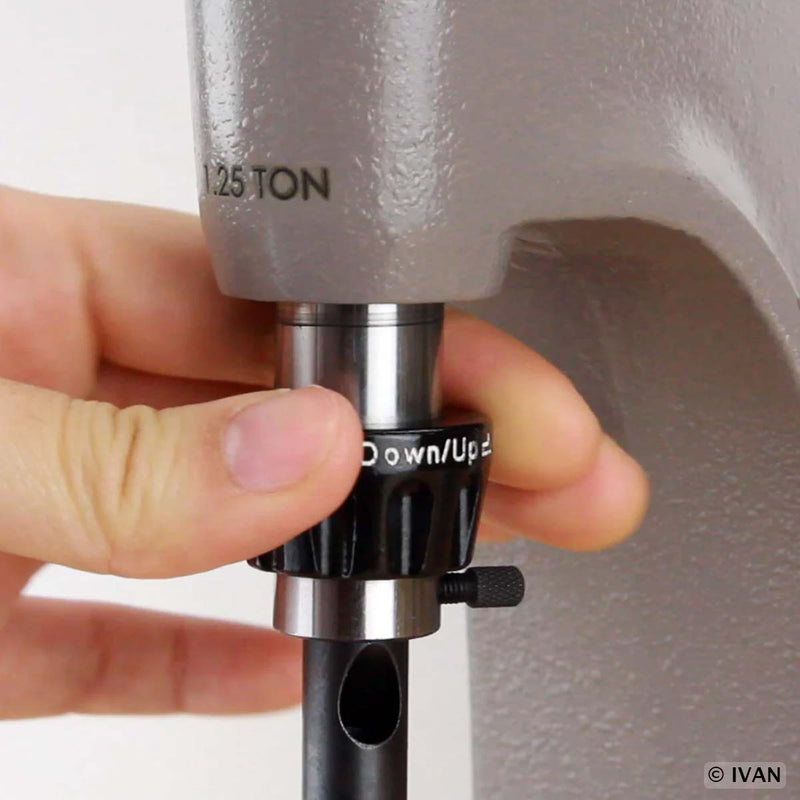

The adjustment knob, located on the upper part of the press, allows for micrometric adjustment to apply optimal pressure depending on the thickness of your leather. This prevents crushing your accessories or, conversely, lacking pressure for a perfect result.

Easy to use and with a power of 1.25 tons, this versatile press is the ideal ally to meet many needs:
- Stamping patterns and letters: Using adapter 3961-01, you can easily emboss your vegetable-tanned leather with 2D, 3D, and alphabet stamps. You can also stamp 3970 brass characters by combining them with the character holder 3961-02. The power of the press ensures a deep and pronounced impression.
- Cutting shapes: Use punching blades for a clean cut on your leather. We advise you to use the cutting plate 3960-11 to protect their cutting edge.
To make round holes, you can also use the screw-on tips from series 3003 with the punch adapter 3993-00. To use the round punches from series 3004-00, you will need adapter 3993-11.
- Setting accessories with setting dies for eyelets, rivets, cap rivets and suitable snap fasteners. There are setting dies for setting claw studs, available by order.
- Marking stitching holes: Perfectly align your stitching or lacing points using screw-on pricking irons (straight stitches: Ref 3008_00 and diamond points series 3009).

A design for performance:
- Thanks to its long ergonomic handle, apply uniform pressure up to 1.25 tons for impeccable results.
- Adjustable height via the positioning vernier (making sure not to go below the black line).

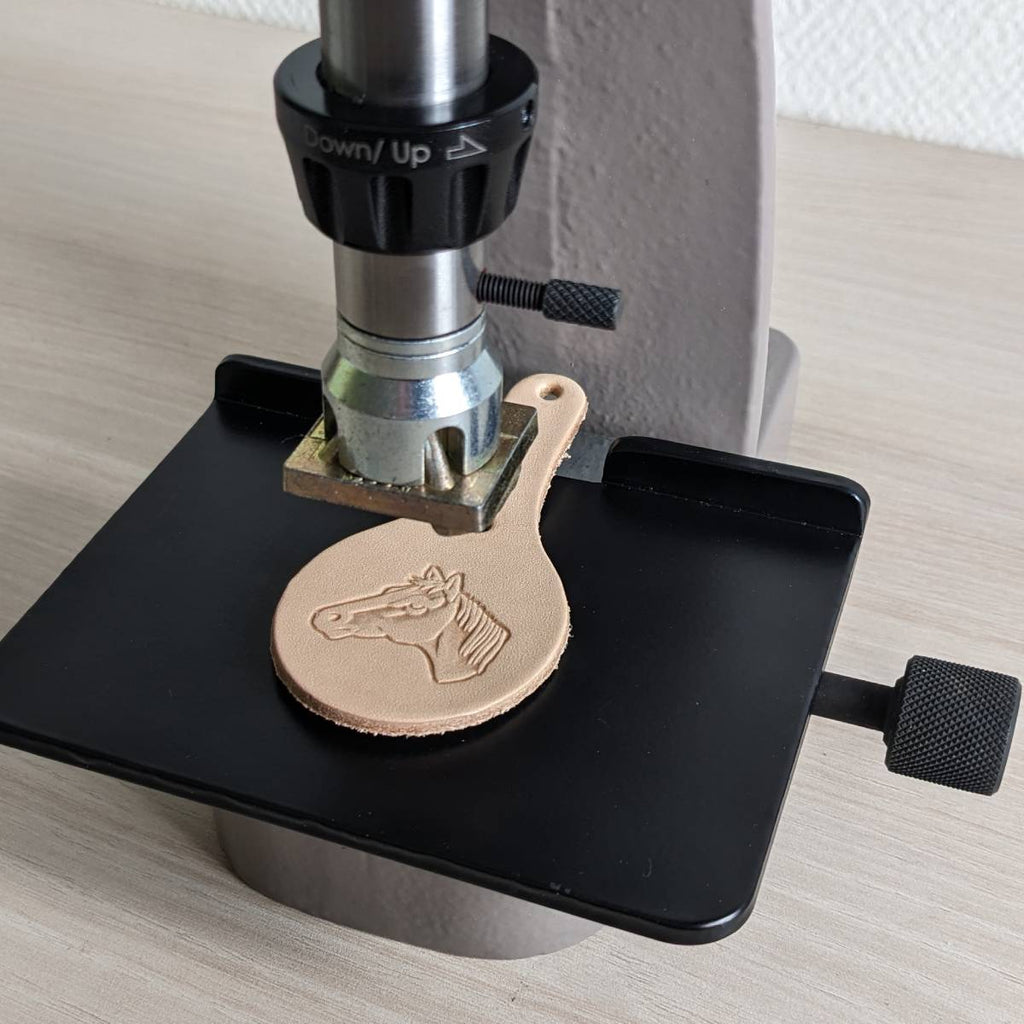

- Mobile black plate for optimal leather positioning.
- Quick assembly: Simply screw the handle to the press. The press must be securely fixed to a workbench using four screws (not supplied). A paper template is included to facilitate drilling holes in your workbench.

Included in the box:
- The hand press
- The comfort handle
- The black plate
- The bolt to fix the handle
- An Allen key
- A spare wear pad (also available as a spare part - Ref. 3960-10)
- A paper template for drilling fixing holes
- Assembly instructions in English and Chinese

All dies, adapters, and other accessories are sold separately.

Features:
- Base size: 7 x 16 cm
- Throat depth: 6 cm
- Handle length: 46 cm
- Machine height (with handle): 64 cm
- Press weight: 8 kg

Made in Taiwan
Item reference: 3960-00
Brand: Craftplus / Ivan
Order information: No shipping outside Europe.
