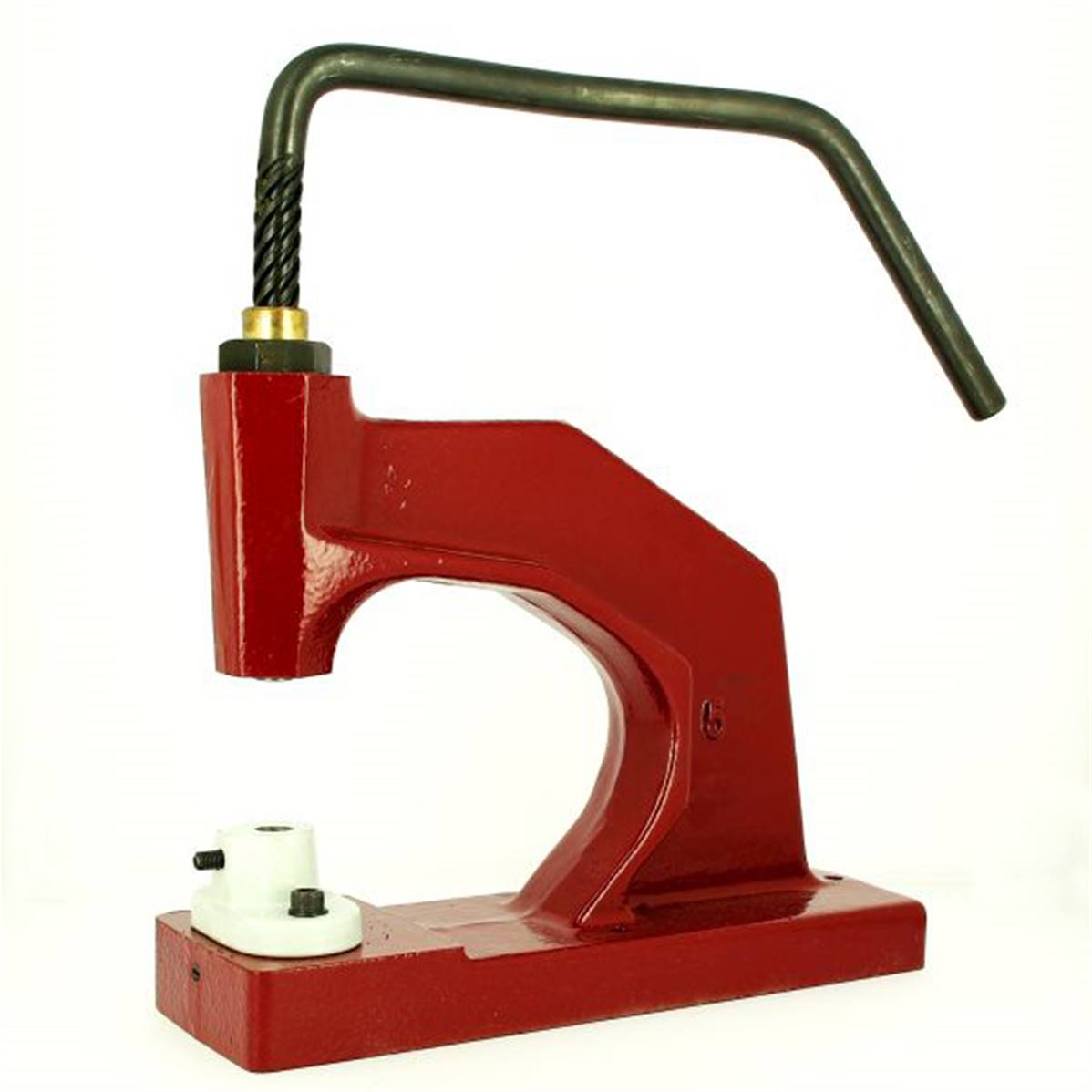

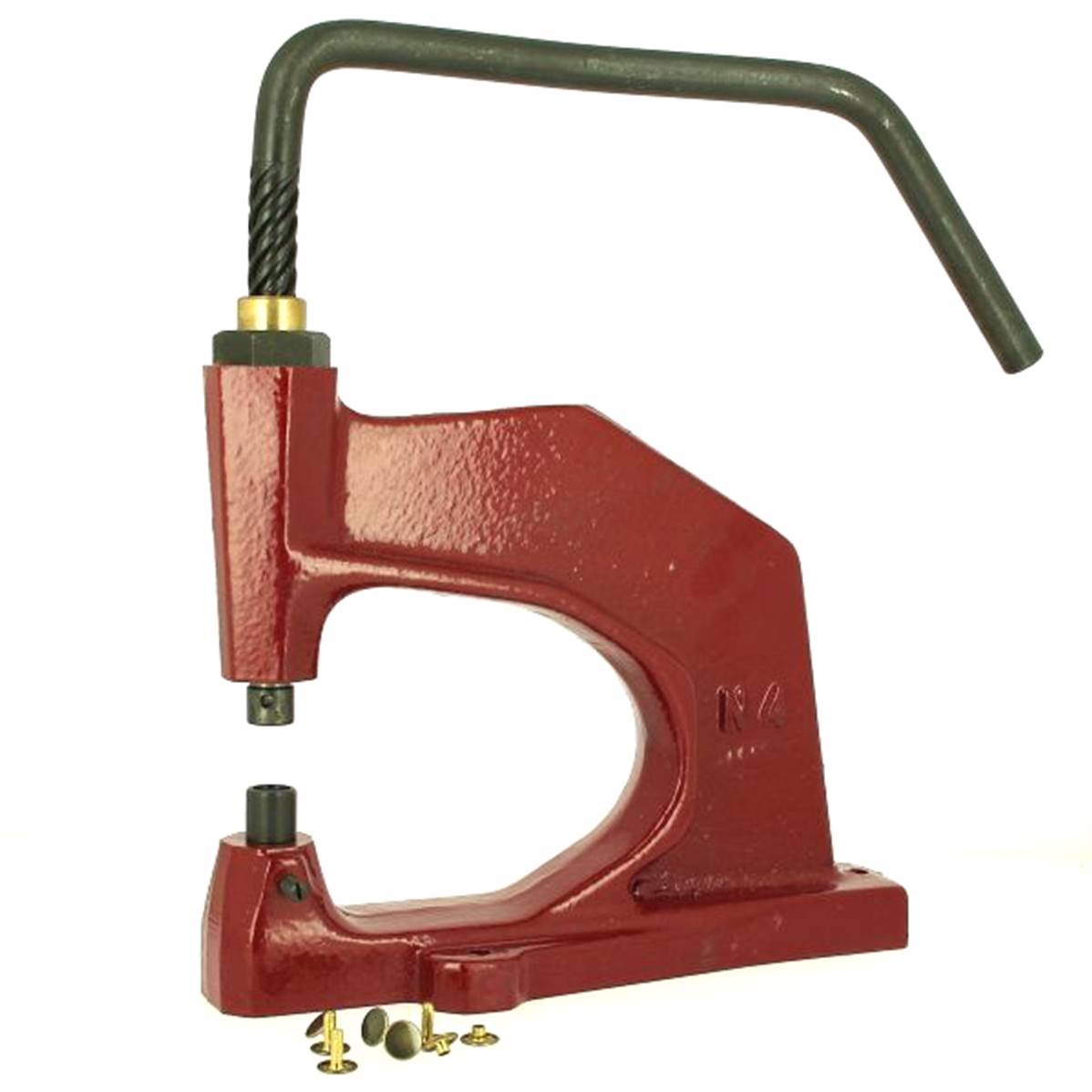

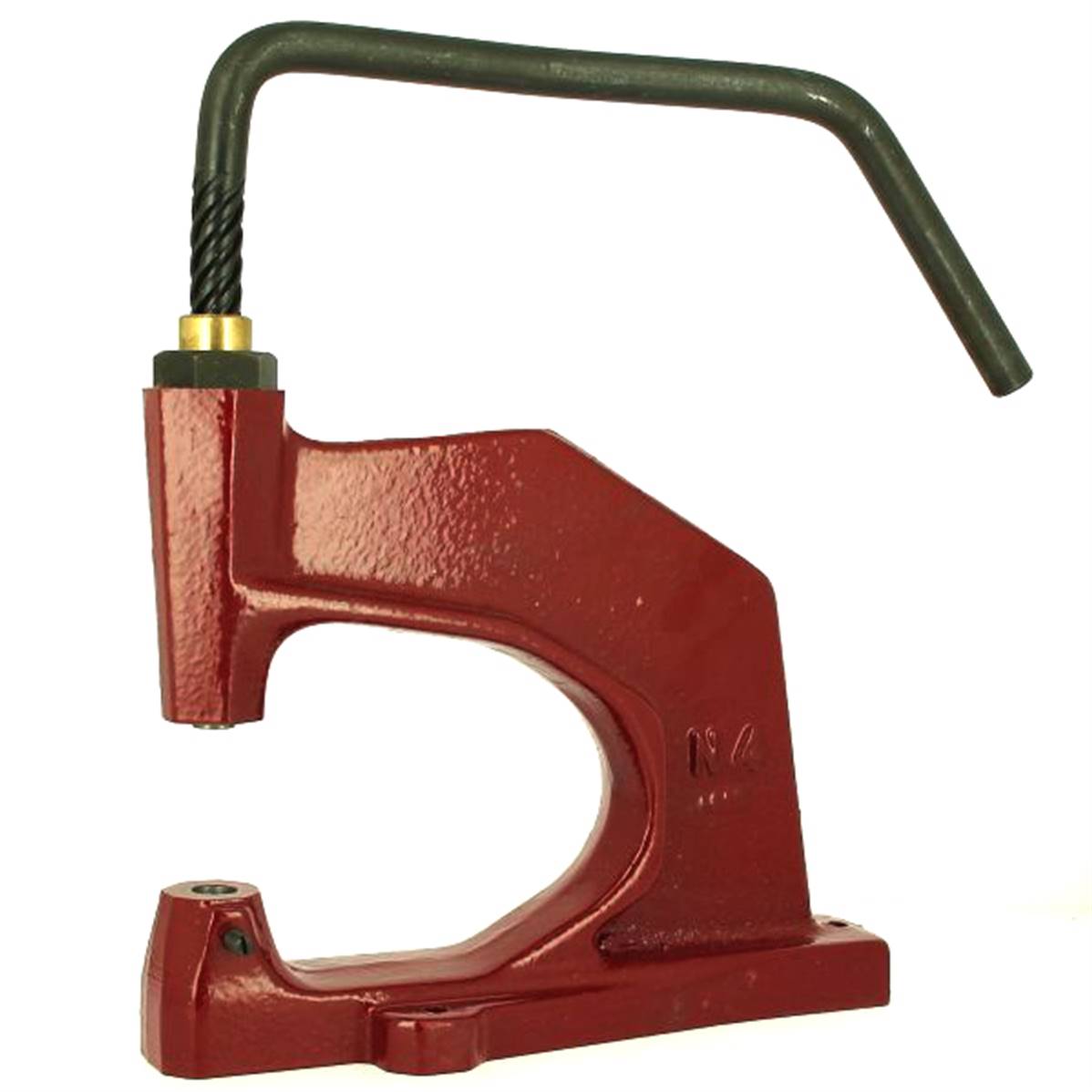

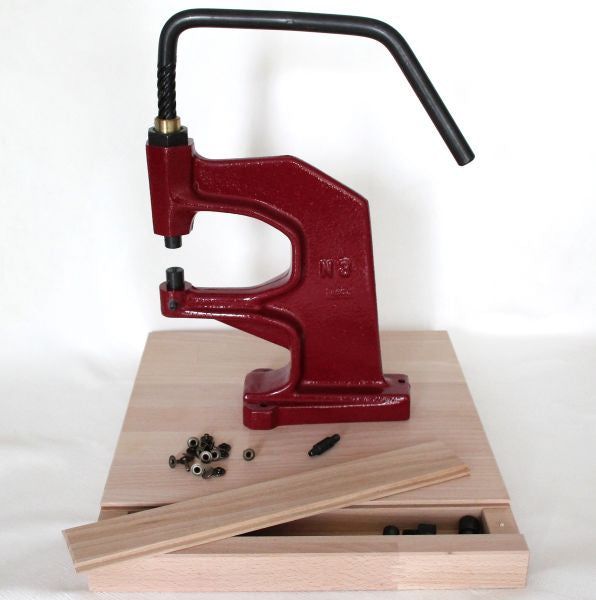

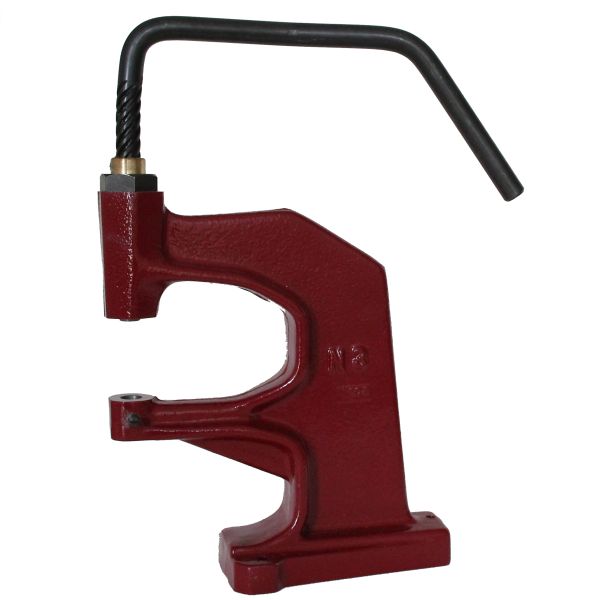

RED BENCH PRESS
This bench press is a professional machine for effortlessly attaching snap fasteners, eyelets, and rivets with a perfect clamp. You can also make holes using bench press dies and a brass base.
This bench press must be used with PRESS setting tools.
You can also use PLIER setting tools by adding the adapter.
Press dimensions:
| Press |
Total height |
Base length | Base width |
Internal recess depth | Internal recess height | Weight |
| N2 |
27.5cm | 19cm | 7.5cm | 7cm | 9cm | 3.3kg |
| N3 |
34cm | 14cm | 8cm | 8cm | 7cm | 4.2kg |
| N4 |
29cm | 23cm | 7.5cm | 11cm | 9cm | 4.2kg |
| N5 |
31cm | 26cm | 8.5cm | 12cm | 11cm | 6.2kg |
Setting tool insertion spacing: 4.3 mm for N2 and 4.5 mm for others.
The upper die is fixed by a 6.2 mm diameter thread.
The lower die is placed in a 12.1 mm diameter hole and held in place by a screw.
It is delivered without setting tools or accessories.
To be used, the press must be fixed to a workbench.
Operation is simple: just turn the handle to the right to lower the piston and apply a perfect clamp.
Made in Italy
Which press should I choose for my use?
| Use for rivets and eyelets | ||||
| Diameter |
Press N2 | Press N3 | Press N4 | Press N5 |
| Up to 12 mm |
✔ |
✔ | ✔ | ✔ |
| From 13 to 15 mm |
⚠ |
✔ | ✔ | ✔ |
| From 16 to 20 mm | ✘ |
⚠ |
✔ |
✔ |
| From 21 to 25 mm |
✘ |
⚠ |
⚠ | ✔ |
| Over 26 mm |
✘ |
✘ |
✘ | ⚠ |
| Use for punch dies | |||
| Hole diameter | Press N2 - N3 | Press N4 | Press N5 |
| From 1 to 10 mm |
✔ |
✔ | ✔ |
| From 11 to 15 mm |
⚠ |
✔ | ✔ |
| From 16 to 18 mm | ✘ |
⚠ |
✔ |
| From 19 to 20 mm |
✘ |
⚠ |
⚠ |
| From 21 to 25 mm |
✘ |
✘ |
⚠ |
✔ For all types of leather
⚠ For thin and soft leathers
✘ Not recommended
The values above are indicative and may vary upwards or downwards depending on the material of the accessories (brass, iron, stainless steel, aluminum) and the thickness of the leather.
