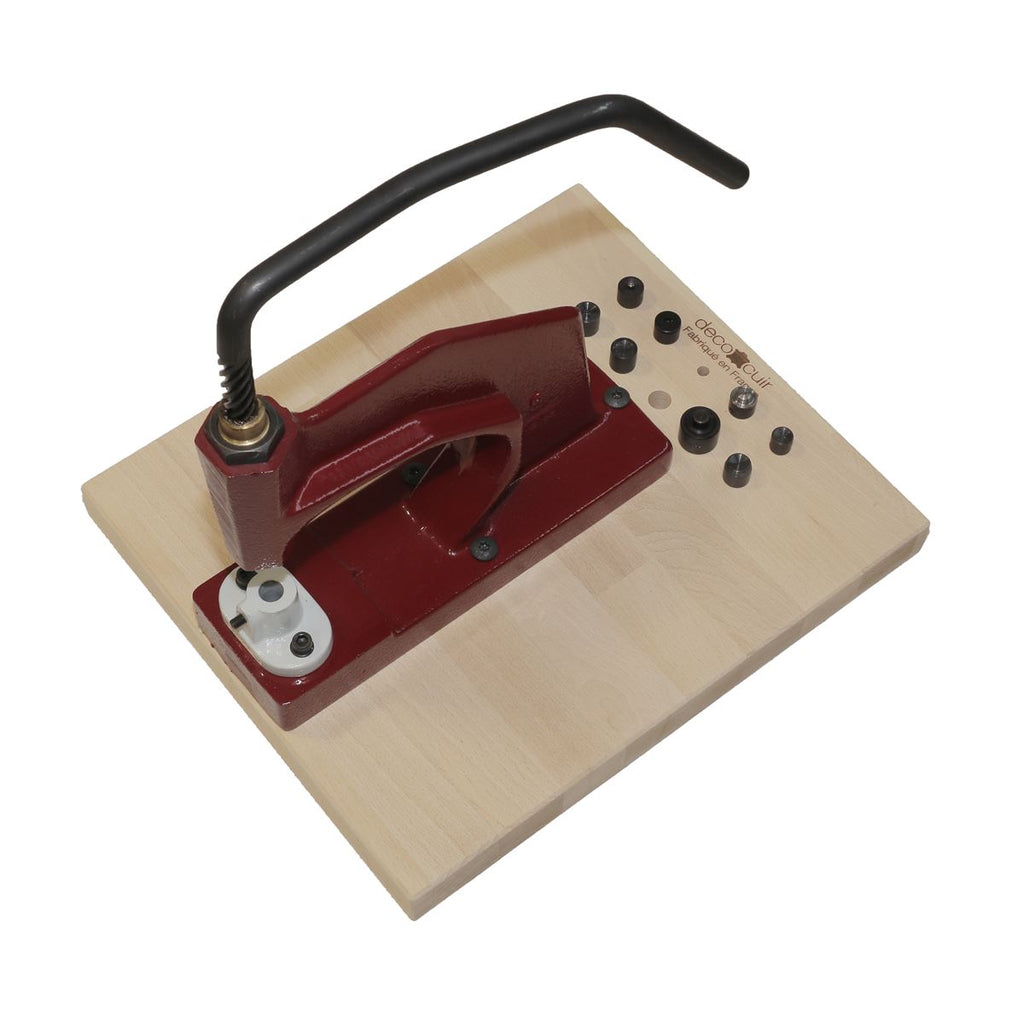

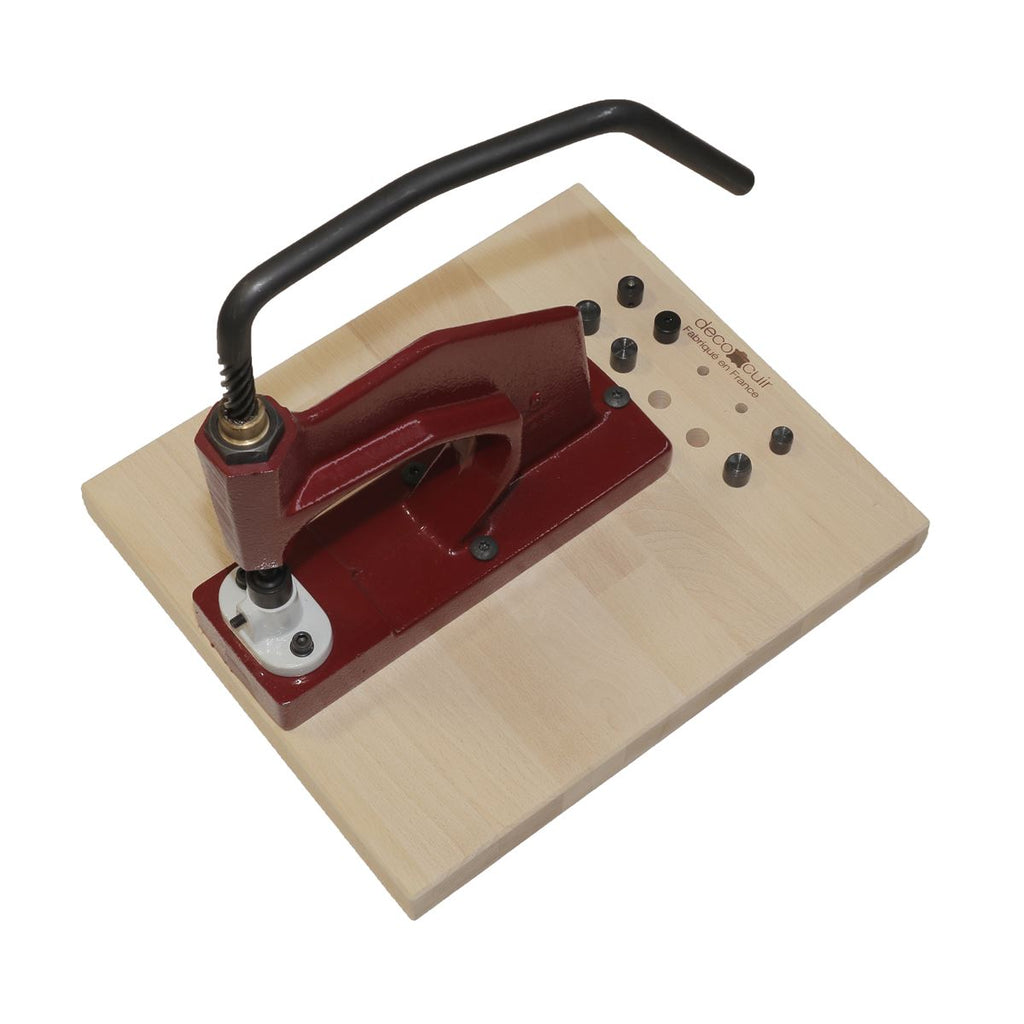

RED PRESS PACK + 3 DIES
This N5 bench press to perfectly fix all your accessories (rivets, eyelets, snap buttons) already mounted on a beech wood base .This Size N5 bench press is a professional machine for effortlessly and perfectly tightening press studs, eyelets and rivets up to 25 mm in diameter. You can also make holes using bench press cutters up to 18mm diameter and a brass pile.
The above values are given as an indication and may vary upwards or downwards depending on the material of the accessories (brass, iron, stainless steel, aluminum) and the thickness of the leather.
For installing accessories or drilling larger holes, we recommend the N5 size press.
Delivered with 3 PRESS installation sets :
- snap button diameter 12 mm
- eyelet diameter 9 mm
- double cap T4 rivet

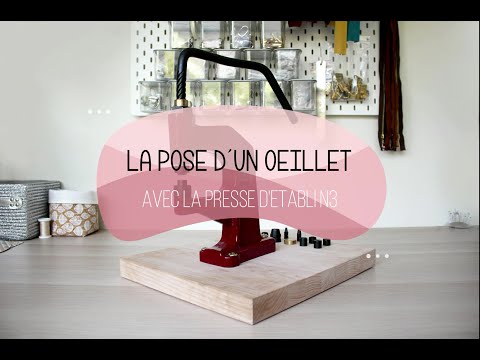

The operation of the machine is simple, just turn the handle to the right to lower the piston and apply perfect tightening (see the video tab) .

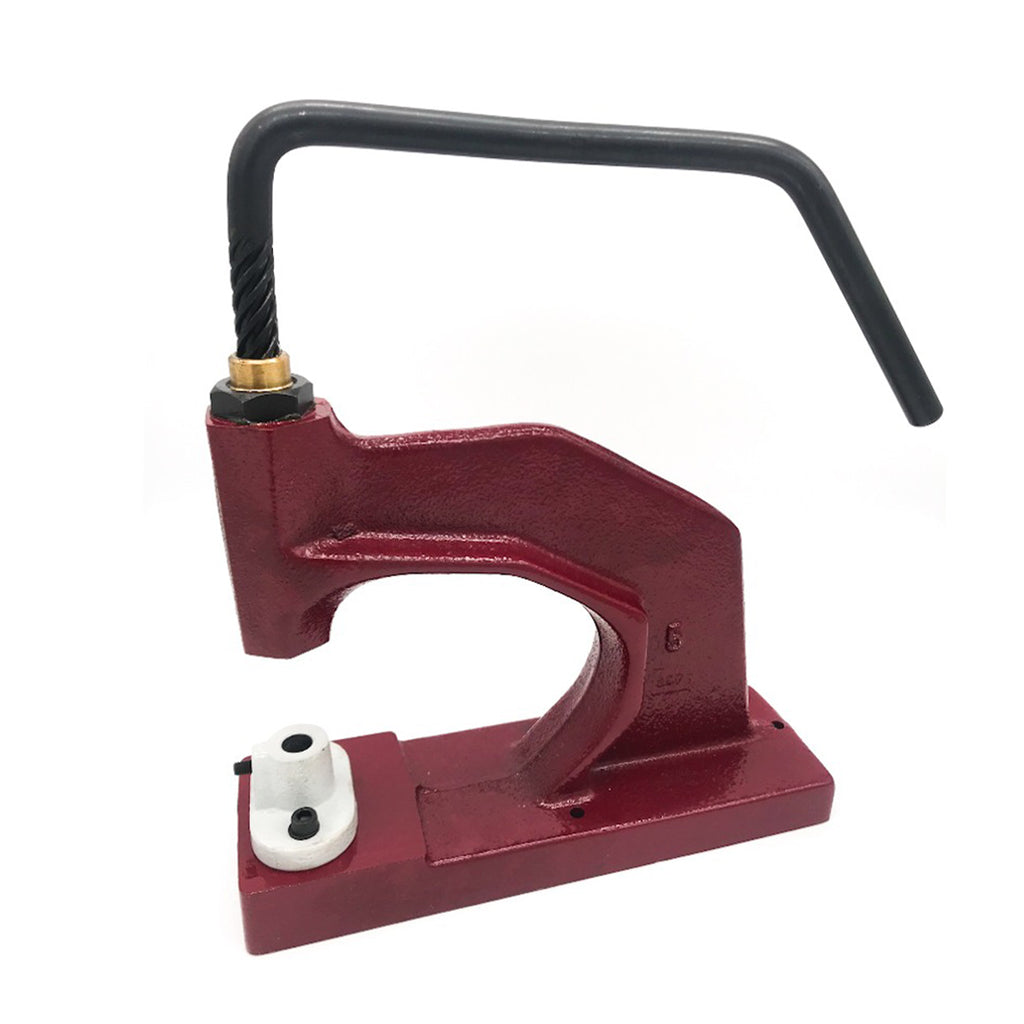

Characteristics of the N5 professional laying machine:
This bench press must be used with the PRESS or MACHINE installation sets sold in this store.
You can also use the PINCE installation sets by adding the adapter sold in store.
Total height: 31 cm
Base: Length: 26 cm - Width: 8.5 cm
Dimensions of the interior recess: Depth: 12 cm - Height: 11 cm
Spacing to insert the installation sets: 4.5 cm
Total weight of the press: 6.2 kg
Base dimensions: 300 x 350 mm - Thickness: 32 mm
The top die is fixed by a 6.2 mm diameter thread.
The bottom matrix is placed in a 12.1 mm diameter hole and held by a screw.
Made in Italy.
Base dimensions: 300 x 350 mm - Thickness: 32 mm
The top die is fixed by a 6.2 mm diameter thread.
The bottom matrix is placed in a 12.1 mm diameter hole and held by a screw.
Made in Italy.
Characteristics of the wooden base.
This support includes 10 holes to store 5 sets of poses.
To use the press, all you have to do is attach it to your table with clamps (not supplied).
Made from beech wood - Made in France
The bench press on its base is sold with the 3 defined installation sets.
You can purchase other posing games in our 'Bench Press posing game' section.
Order information: No shipping outside mainland France.
