Description
RED PRESS PACK + 3 DIES
This manual bench press Size N3 is a professional machine for effortlessly and perfectly tightening snap fasteners, eyelets and rivets up to 15 mm in diameter. You can also make holes using bench press punches up to 10 mm in diameter and a brass pin.
The above values are given as an indication and may vary upwards or downwards depending on the material of the accessories (brass, iron, stainless steel, aluminum) and the thickness of the leather.
For installing accessories or drilling larger holes, we recommend the N4 size press.
Operation is simple, just turn the handle to the right to lower the piston and achieve perfect tightening.
Supplied with 3 PRESS installation sets :
- 12 mm diameter snap button
- eyelet diameter 5 mm
- T3 double cap rivet
The operation of the machine is simple, just turn the handle to the right to lower the piston and exert perfect tightening (see the video tab) .
Features of the N3 professional laying machine:
This manual bench press must be used with the PRESS or MACHINE installation sets sold in this store.
You can also use the PINCE installation sets by adding the adapter sold in store.
Total height: 34 cm
Base: Length: 14 cm - Width: 8 cm
Dimensions of the interior recess: Depth: 8 cm - Height: 7 cm
Spacing for inserting the laying sets: 4.5 cm
Total weight of the press: 4.2 kg
Base dimensions: 300 x 350 mm - Thickness: 32 mm
The upper die is fixed by a 6.2 mm diameter thread.
The lower die is placed in a 12.1 mm diameter hole and held in place by a screw.
Made in Italy.
Order info : No shipping outside mainland France.
Base: Length: 14 cm - Width: 8 cm
Dimensions of the interior recess: Depth: 8 cm - Height: 7 cm
Spacing for inserting the laying sets: 4.5 cm
Total weight of the press: 4.2 kg
Base dimensions: 300 x 350 mm - Thickness: 32 mm
The upper die is fixed by a 6.2 mm diameter thread.
The lower die is placed in a 12.1 mm diameter hole and held in place by a screw.
Made in Italy.

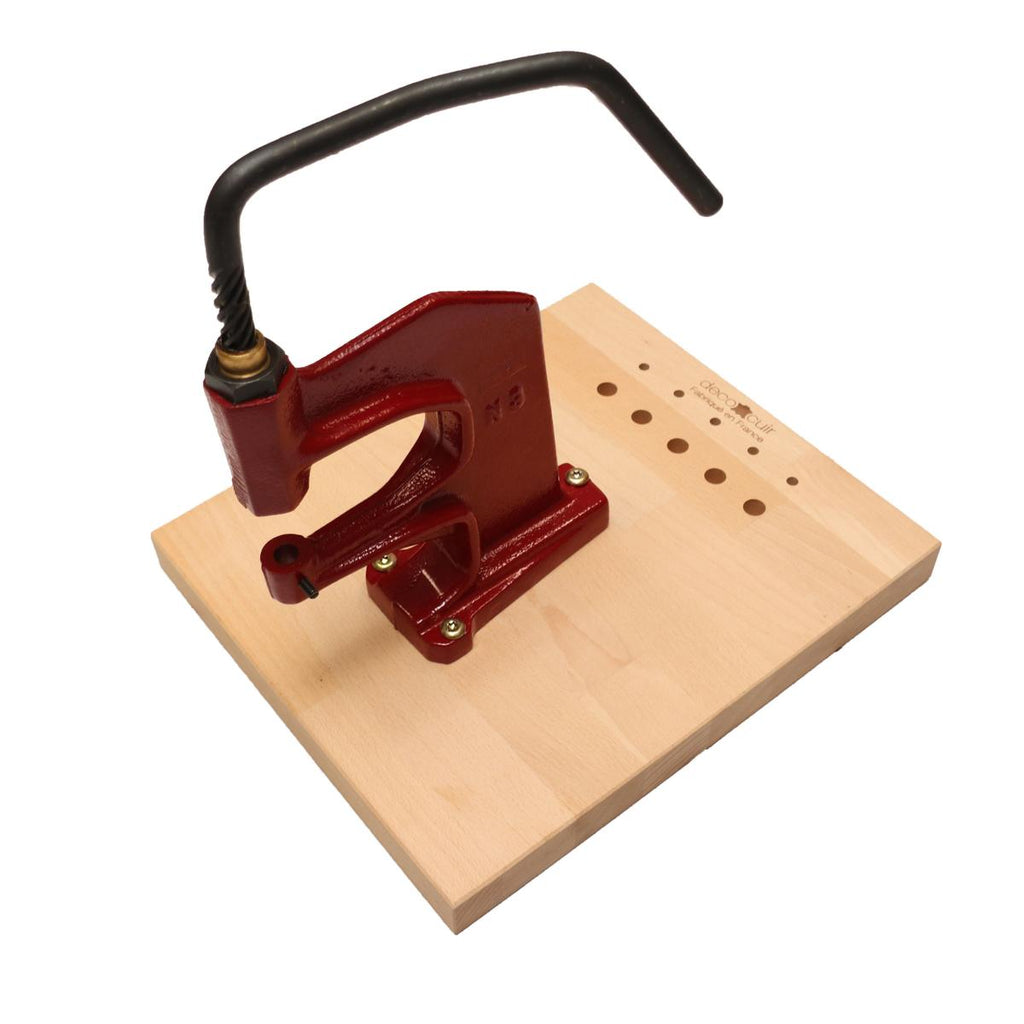

Features of the wooden base:
This support includes 10 holes to store 5 sets of poses.

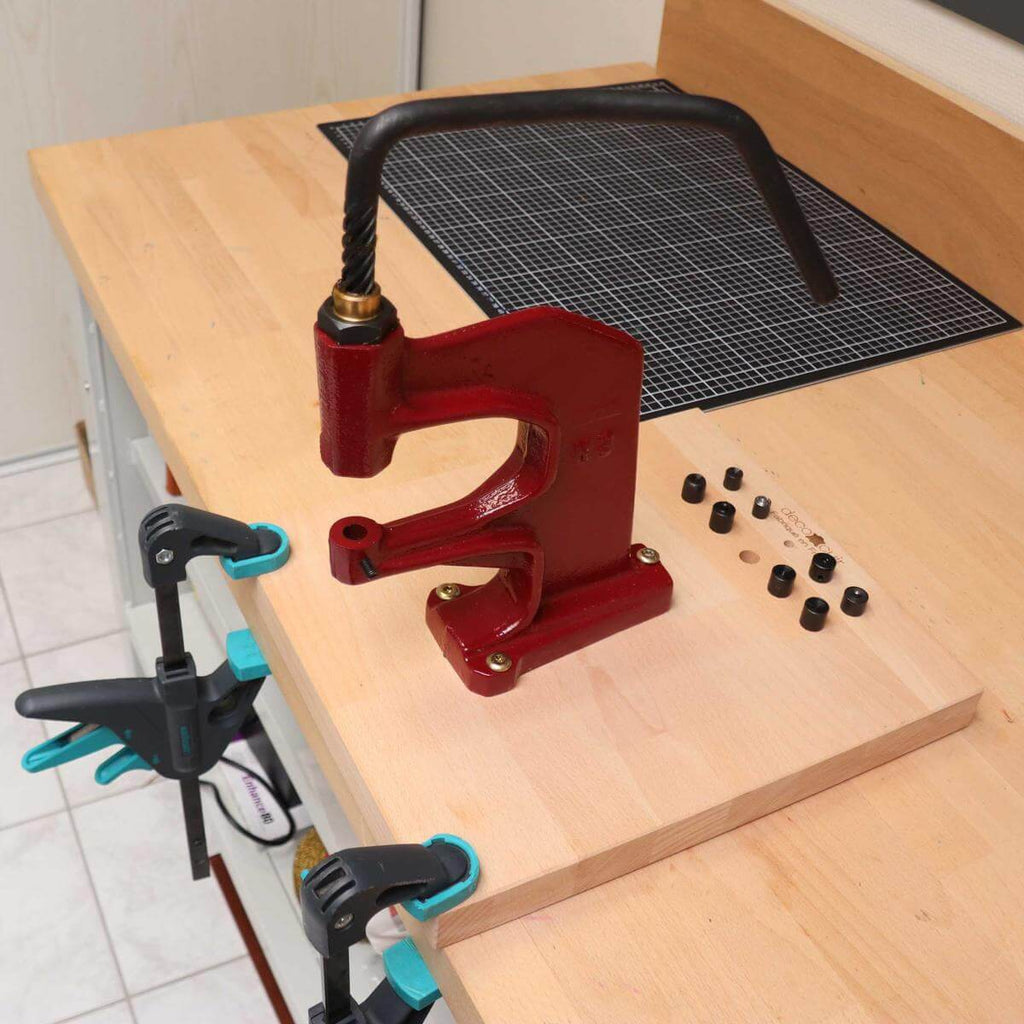

To use the press, you just need to attach it to your table with clamps (not supplied).
Made of beech wood - Made in France
The bench press on its base is sold with the 3 defined installation sets.
You can buy other installation sets in our 'Workbench Press Installation Set' section.
