DIAMOND POINT LEATHER STITCHING CHISEL

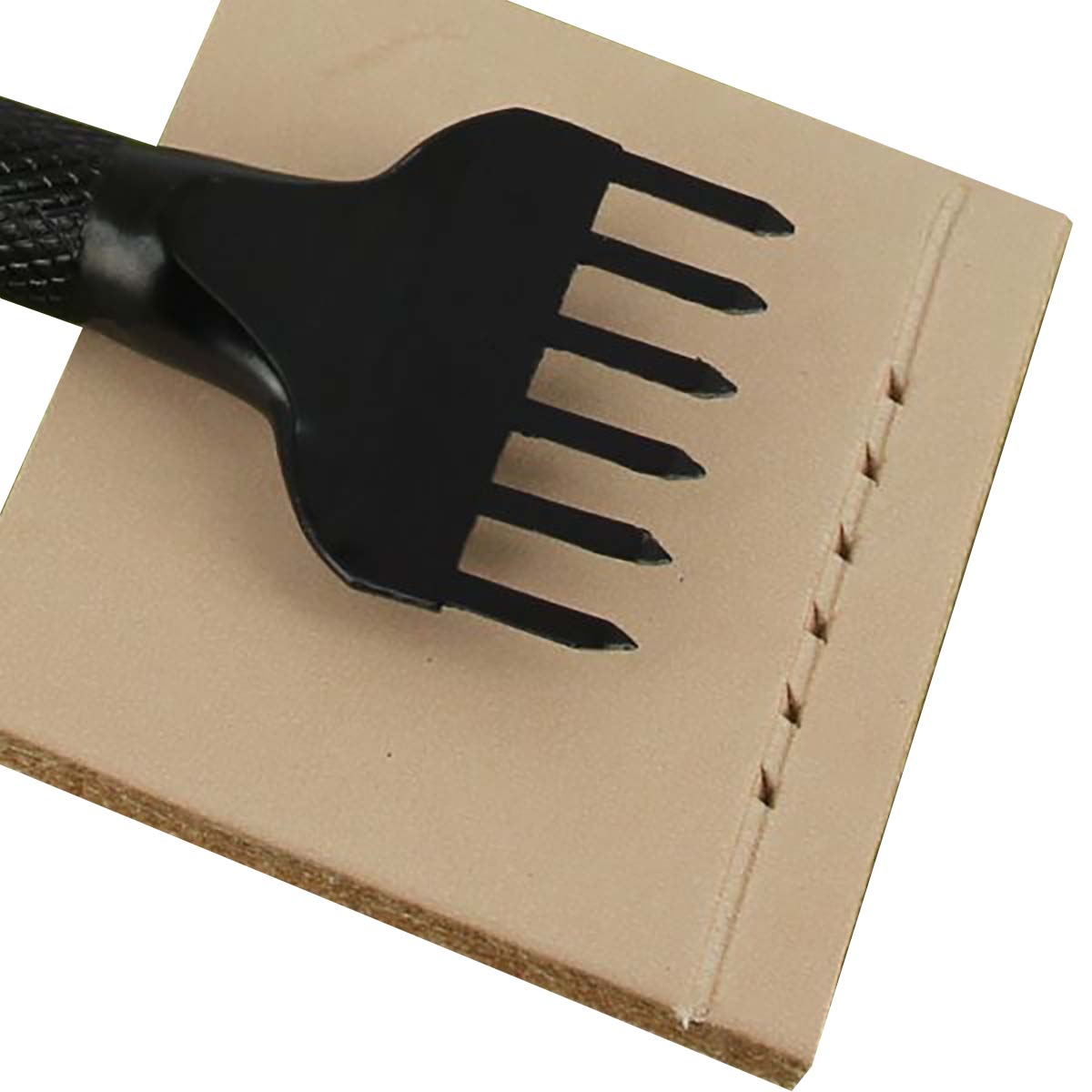

This stitching chisel allows you to make several diamond-shaped holes in a single strike of a mallet, thanks to its diamond point. This tool enables you to punch holes for an even and straight saddle stitch.
Each stitch is 2.5 mm wide and the spacing between each stitch is 5.1 mm. Ideal for large leather goods.
Hardened steel blade.
Black chrome-plated steel handle, treated to prevent surface corrosion.
Very high wear resistance.
Dimensions :
| Teeth | Blade width | Handle diameter | Ivan Reference |

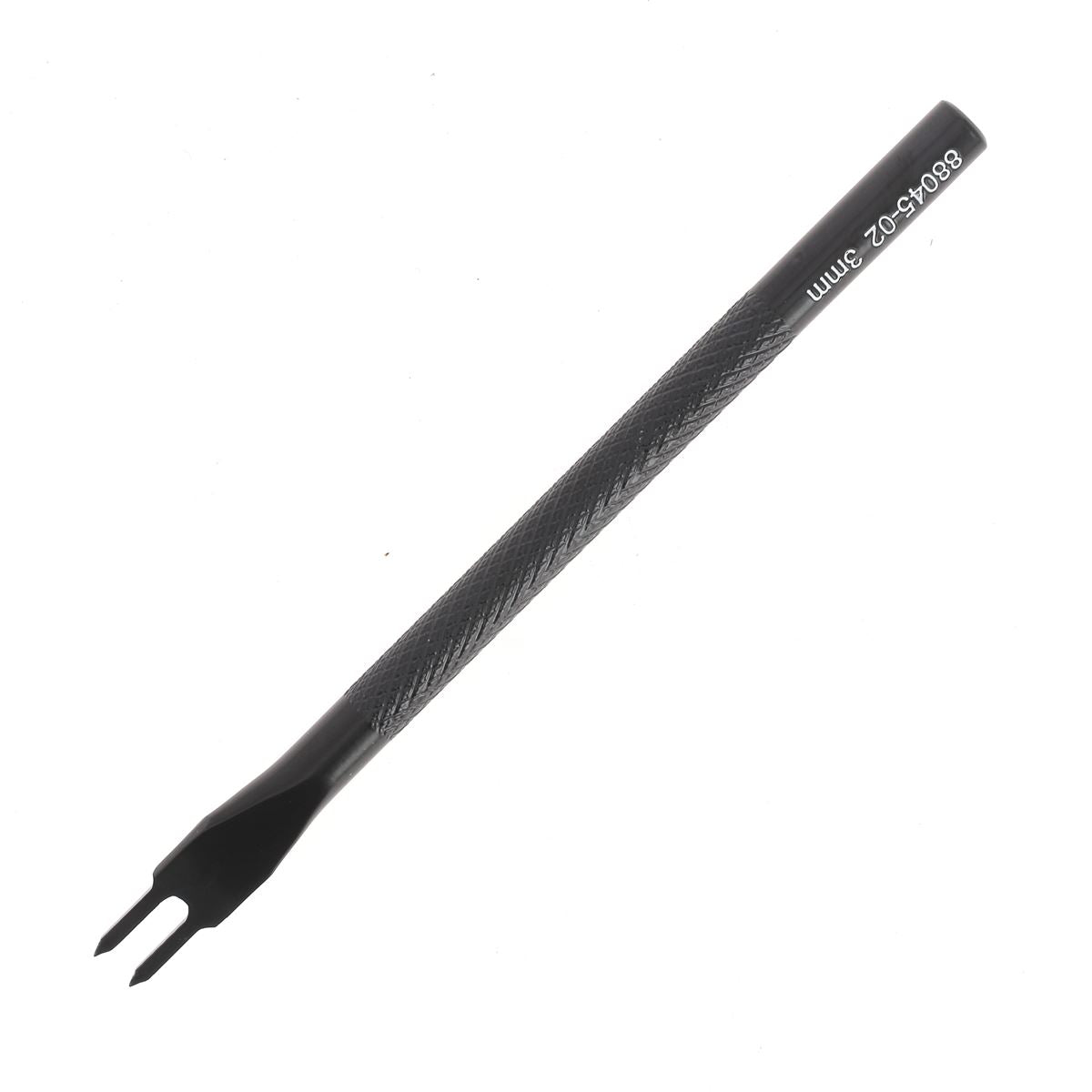

| 2 | 7.6 mm | 6.5 mm | 88045-02 |
| 4 | 17.6 mm | 8 mm | 88045-04 |
| 6 | 29 mm | 10 mm | 88045-06 |
Total tool length: 11.5 cm
Information :
- Also available as a diamond point stitching chisel with 1 tooth (Ref. 88043_00).
- The 3 mm marking on the tool handle corresponds to the space between the teeth. The stitch spacing (distance between two holes) is 5.1 mm.
Sold individually
Made in Taiwan
Which stitch spacing should I choose for my creation?
Stitch spacing is the distance between two stitches: it should be chosen according to the item you wish to create (an aesthetic choice).
The various combinations of stitch spacing/thread diameter produce different aesthetic results: it's up to you to choose!
Table provided for guidance:
| Leather item | Total leather thickness | Stitch spacing | Thread diameter |
| Small item (e.g. bookbinding, small leather goods) | Max. 2.5 mm | 2.5 to 3.38 mm | 0.30 to 0.53 mm |
| Medium item (e.g. leather goods) | Max. 4 mm | 3.38 to 3.85 mm | 0.54 to 0.70 mm |
| Large item (e.g. upholstery, saddlery, luggage) | Max. 7 mm | 4 to 6.75 mm | 0.76 to 1.30 mm |
