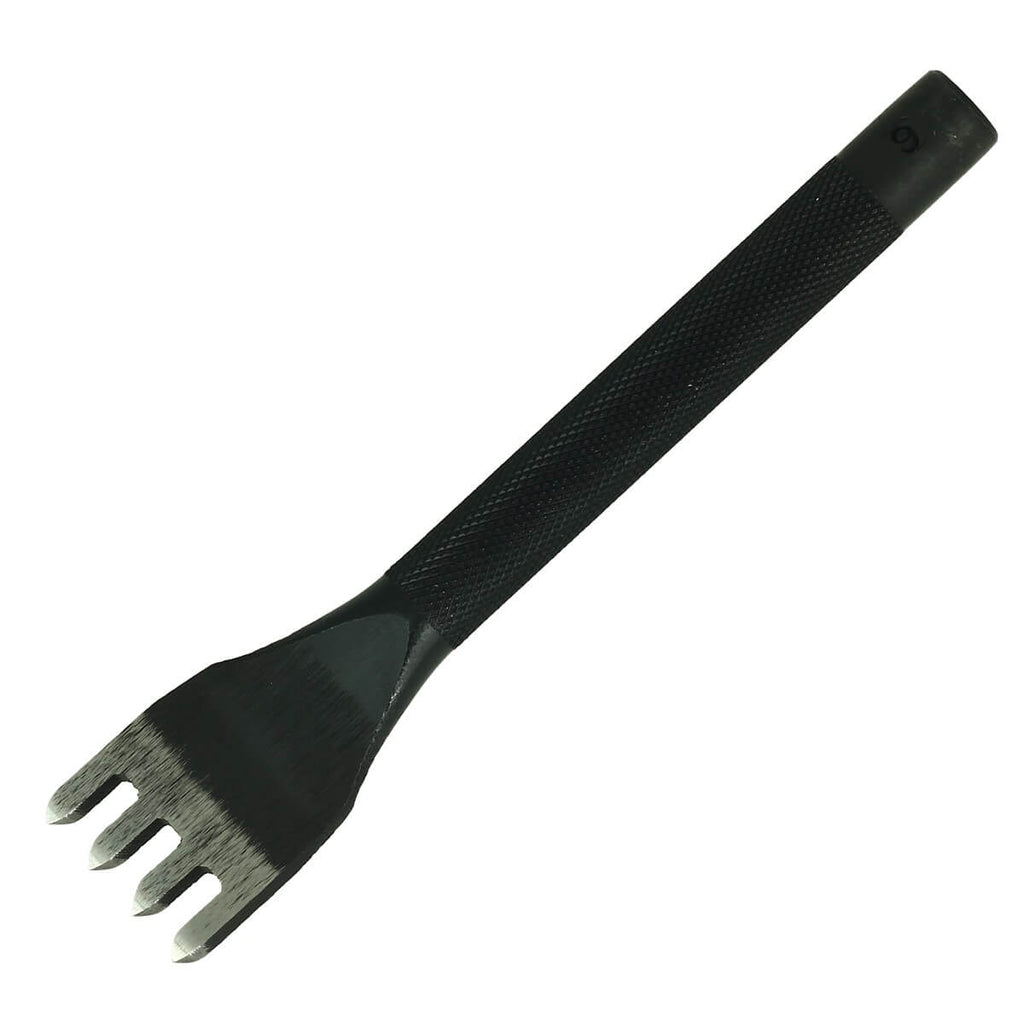

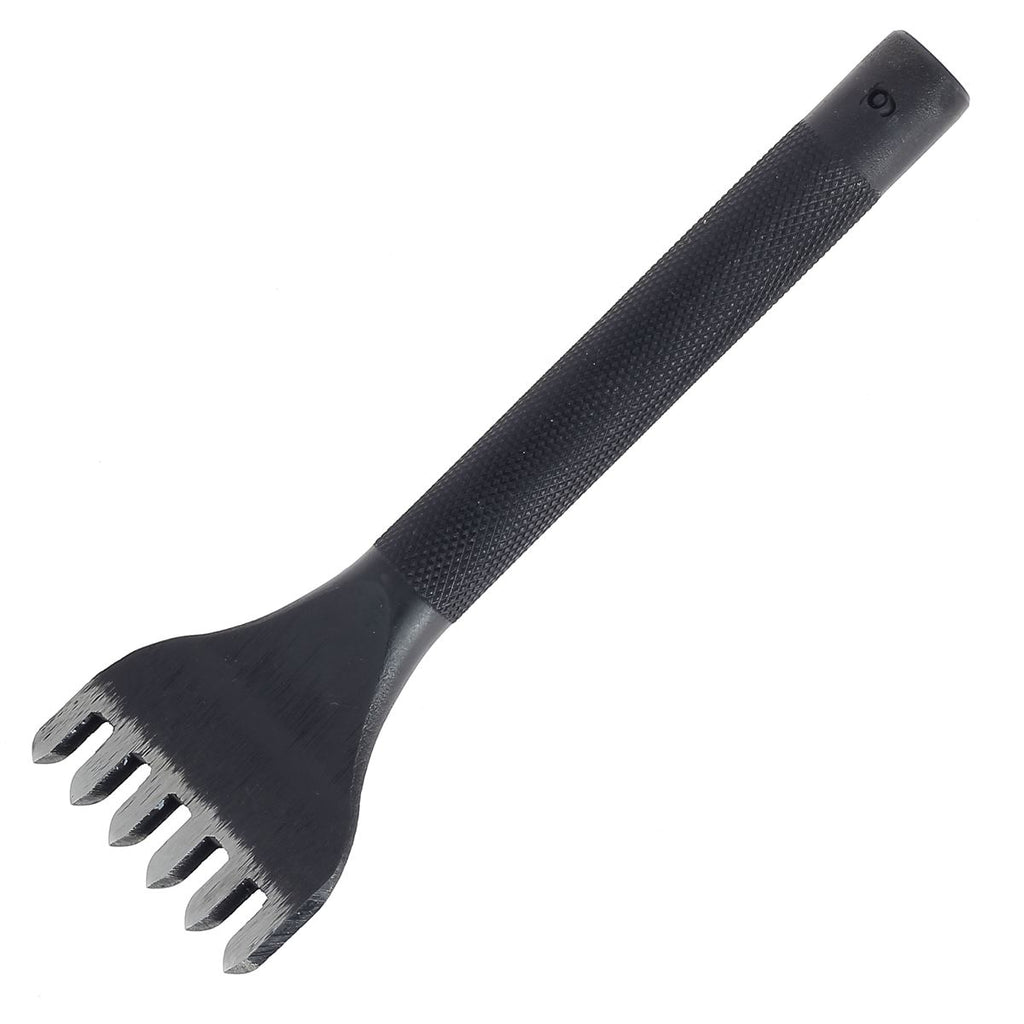

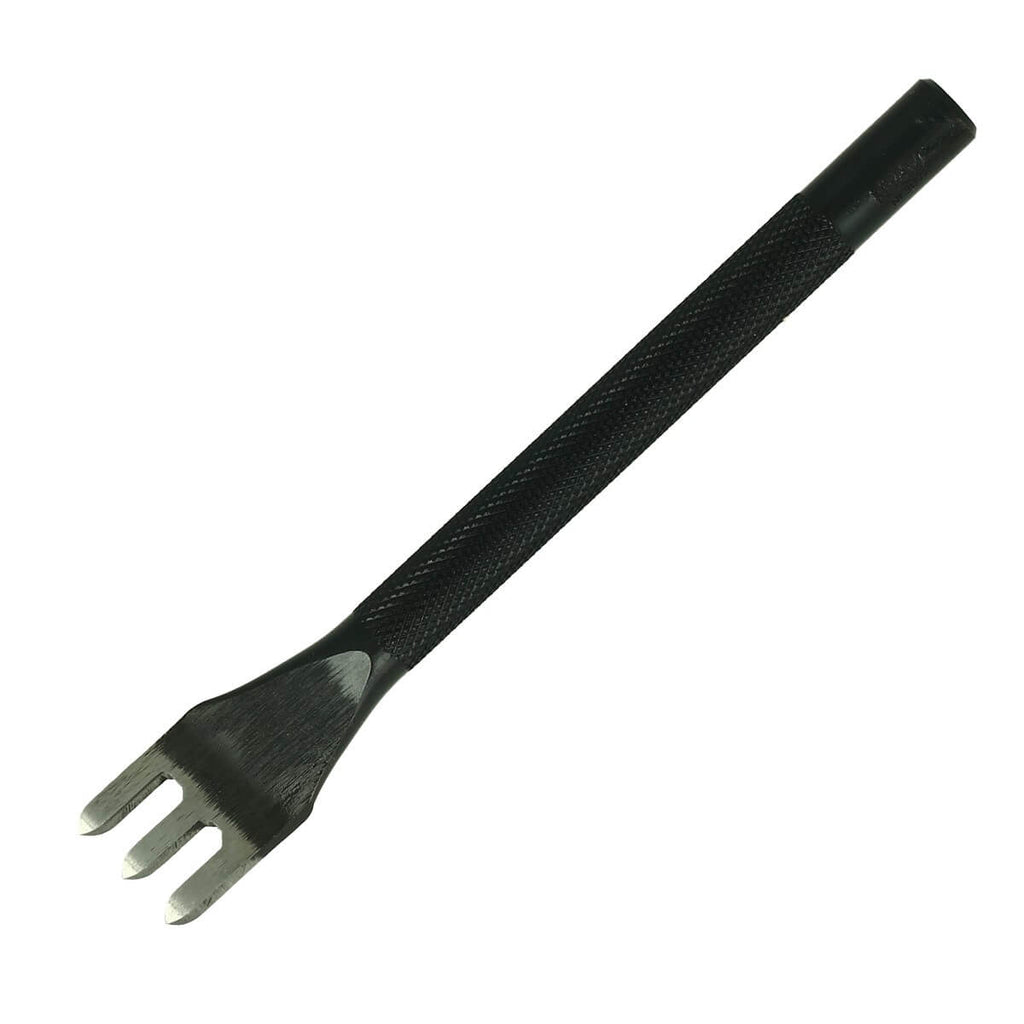

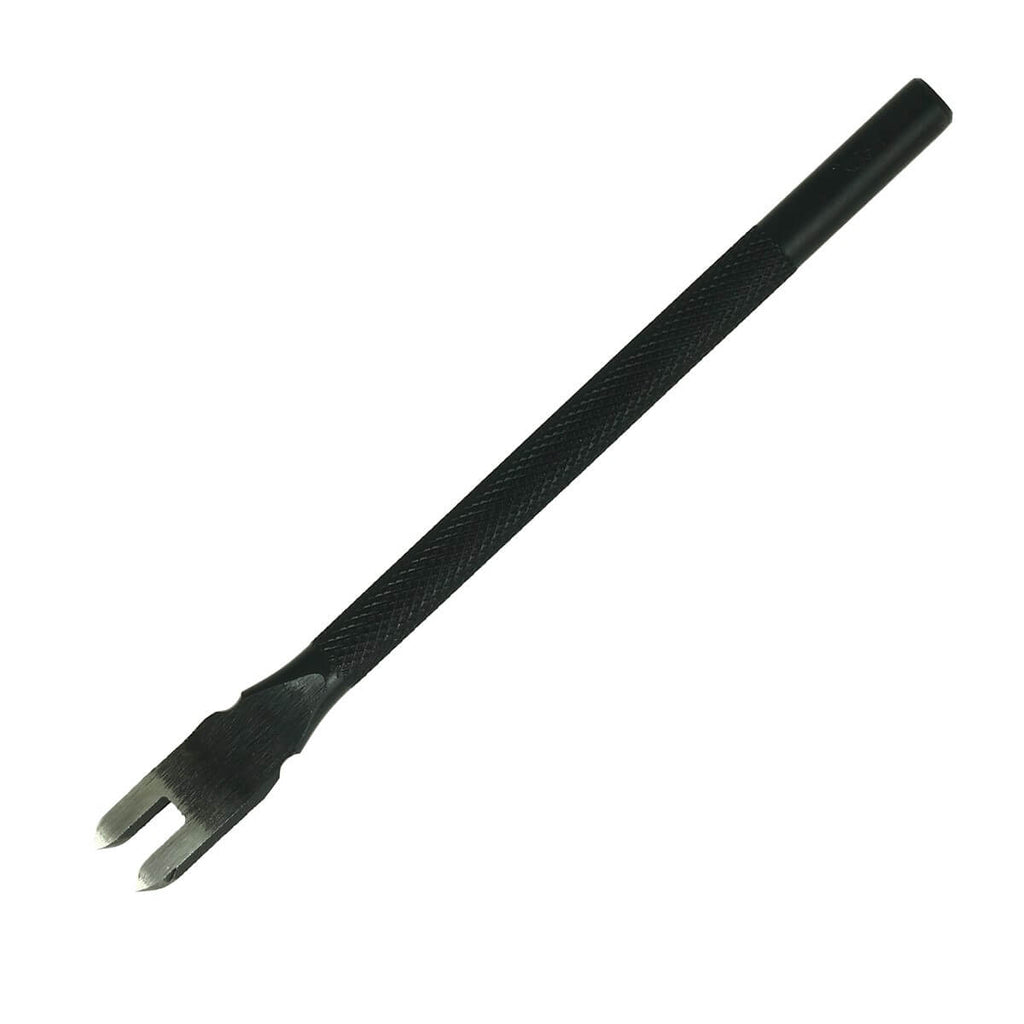

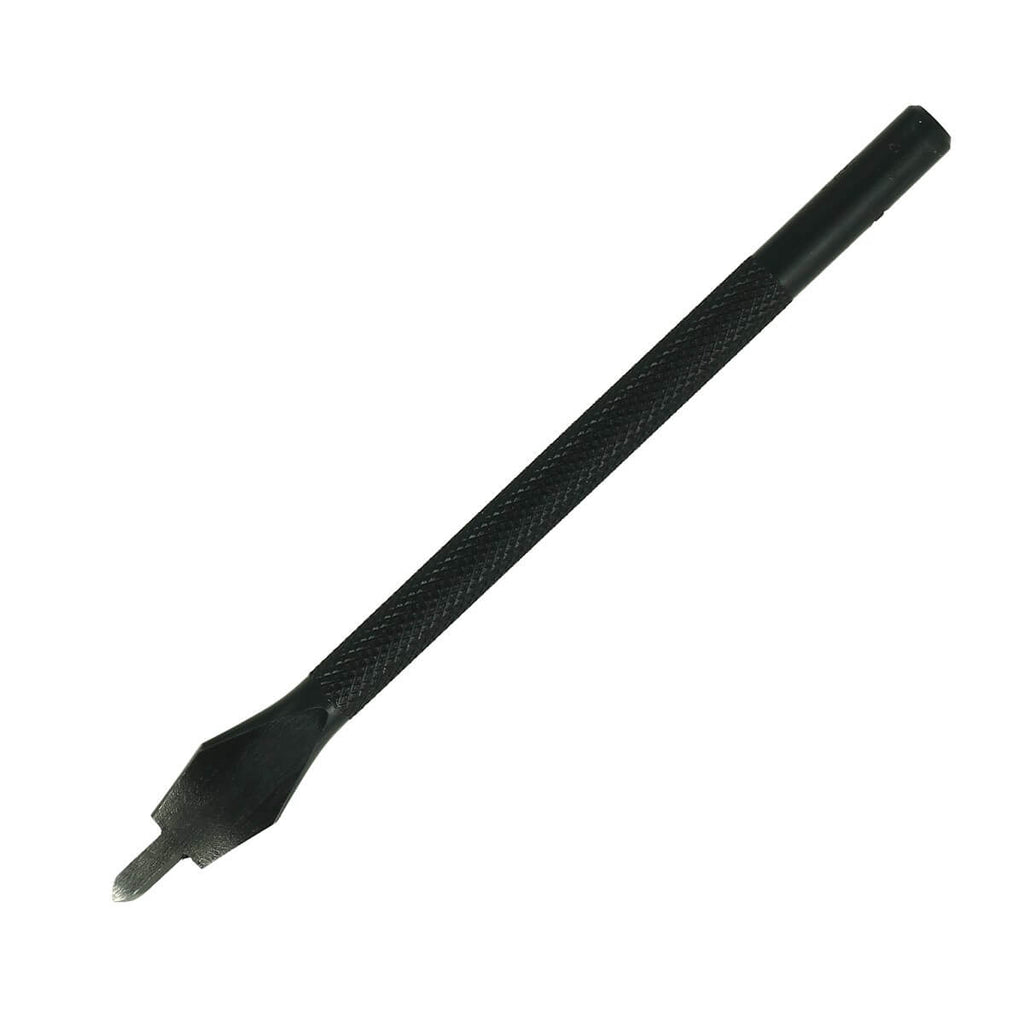

DIAMOND POINT LEATHER STITCHING CHISEL
These pricking irons are used to mark the interval of stitching points on leather to achieve beautiful, regular saddle stitches. The mark made is diamond-shaped (diamond point).
The spacing between each point is 6 mm. Ideal for large leather goods.
This range of high-quality tools, made in Japan, boasts a remarkable finish, making them extremely pleasant to use.
Tool dimensions :
| Number of teeth | Total width of tools |
| 1 | 4 mm |
| 2 | 10 mm |
| 3 | 15.7 mm |
| 4 | 22 mm |
| 6 | 34 mm |
Length: 110 mm
Blade thickness: 1.4 mm
Usage tips:
- Use an ERTALON plate, a vinyl plate, or a self-healing mat as a cutting surface.
- Your chisel must be perfectly vertical when you strike.
- Strike with a wooden or polymer mallet; it should be heavy enough for precise and less tiring cutting. Do not use a steel hammer. With one mallet stroke, you mark several holes in the leather for your stitching. You can also completely pierce thin leathers (max 1mm).
- When you want to mark thick leathers, do not hesitate to put a thin layer of beeswax on the teeth to facilitate gliding and prevent damaging the chisel.
Hardened steel blade.- When you want to mark thick leathers, do not hesitate to put a thin layer of beeswax on the teeth to facilitate gliding and prevent damaging the chisel.
Very high wear resistance.
Sold individually
Made in Japan

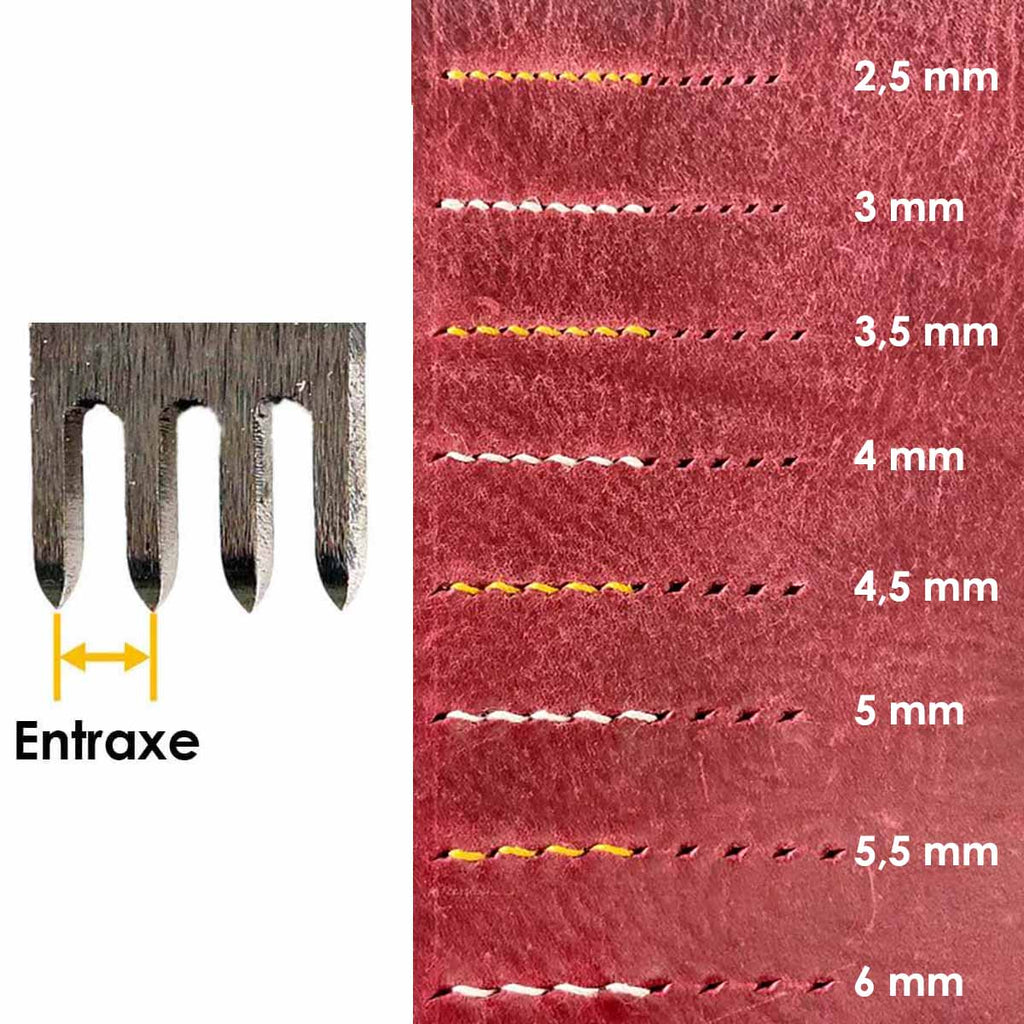

Which spacing to choose for my creation?
The spacing is the distance between two points: it should be chosen according to the item you wish to create (aesthetic choice).
Different spacing / thread diameter combinations give different aesthetic results: it's up to you to choose!
Indicative table:
| Leather Item | Total Leather Thickness | Spacing | Thread Diameter |
| Small Item (e.g. binding, small leather goods) | Max. 2.5 mm | 2.5 to 3.38 mm | 0.30 to 0.53 mm |
| Medium Item (e.g. leather goods) | Max. 4 mm | 3.38 to 3.85 mm | 0.54 to 0.70 mm |
| Large Item (e.g. furniture, saddlery, luggage) | Max. 7 mm | 4 to 6.75 mm | 0.76 to 1.30 mm |
